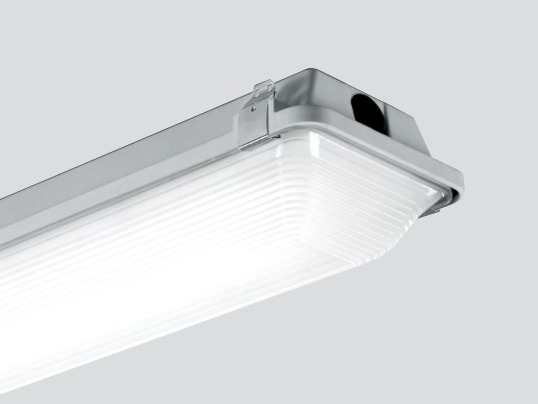

Surface Mount Industrial Fixture
1 fixtures per channel
5% – 100%
infoMax Cat6 run length per fixture qty at full output. Assumes a 57 V X-PoE input.
warningX-PoE requires driverless fixtures — specify the driverless variant, or remove the driver before install.
│ CH1+ ────── LED+
X-PoE ─── XPD IN │ CH1- ────── LED-
┌─── XPD OUT │ CH2+ ────── (unused)
│ │ CH2- ────── (unused)
│
└── (to additional XPDs / fixtures)
Notes:
• Manufacturers may need to ship some fixtures wired to CH2 instead of CH1 — verify before install.Only 1 fixture supported.
infoRecommended starting values. Actual settings may need to be tuned for real-world conditions.
