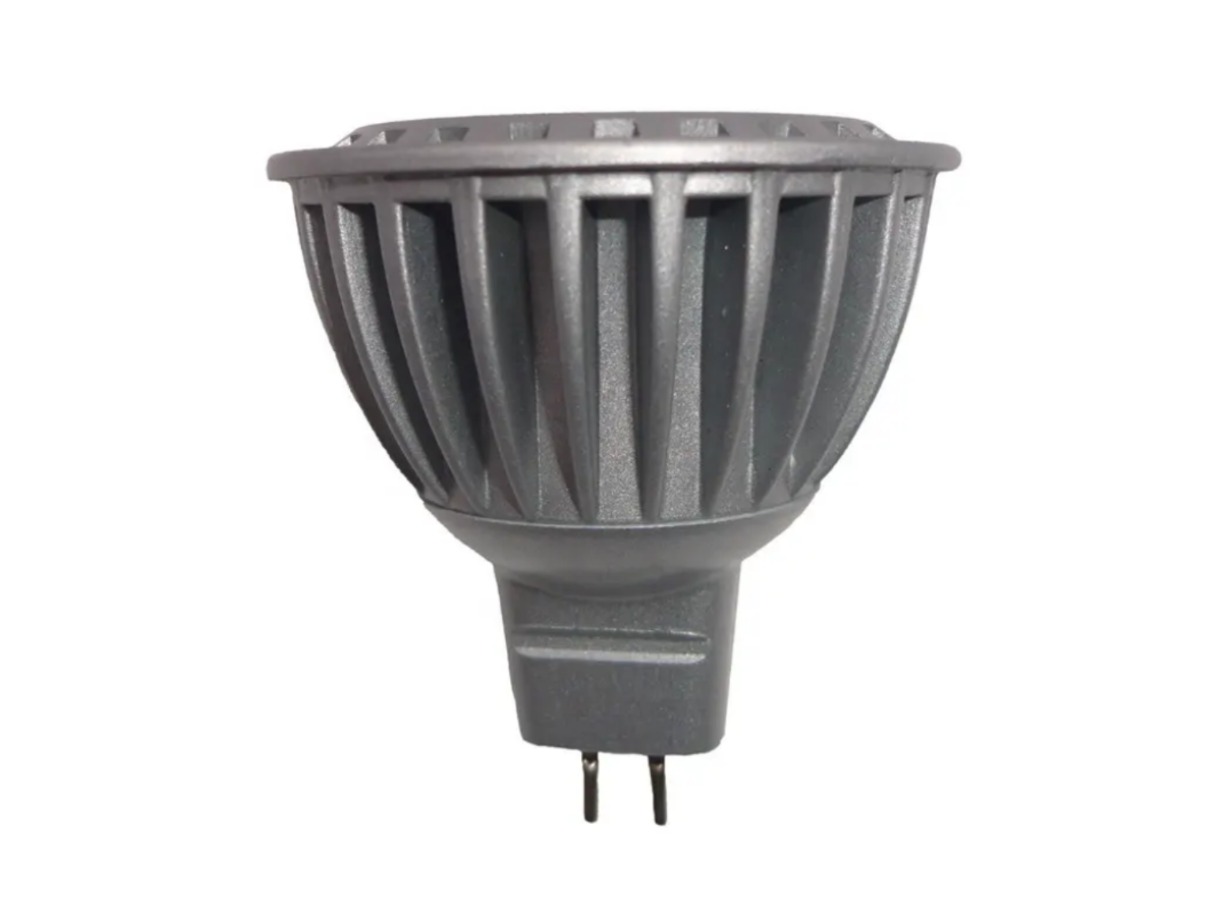

X-PoE DC Light Bulb - MR16 GU5.3
6 fixtures per channel
2% – 100%
infoMax Cat6 run length per fixture qty at full output. Assumes a 57 V X-PoE input.
│ CH1+ ────── LED+
X-PoE ─── XPD IN │ CH1- ────── LED-
┌─── XPD OUT │ CH2+ ────── (unused)
│ │ CH2- ────── (unused)
│
└── (to additional XPDs / fixtures)
Notes:
• Manufacturers may need to ship some fixtures wired to CH2 instead of CH1 — verify before install.Between 1 fixture – 6 fixtures.
infoRecommended starting values. Actual settings may need to be tuned for real-world conditions.
Designed for installation in standard MR16 GU5.3 sockets. When converting an existing AC fixtures to DC, connect Black (Line) to Red (+), White (Neutral) to Black (-), and cap/abandon the Green (Ground) conductor.
